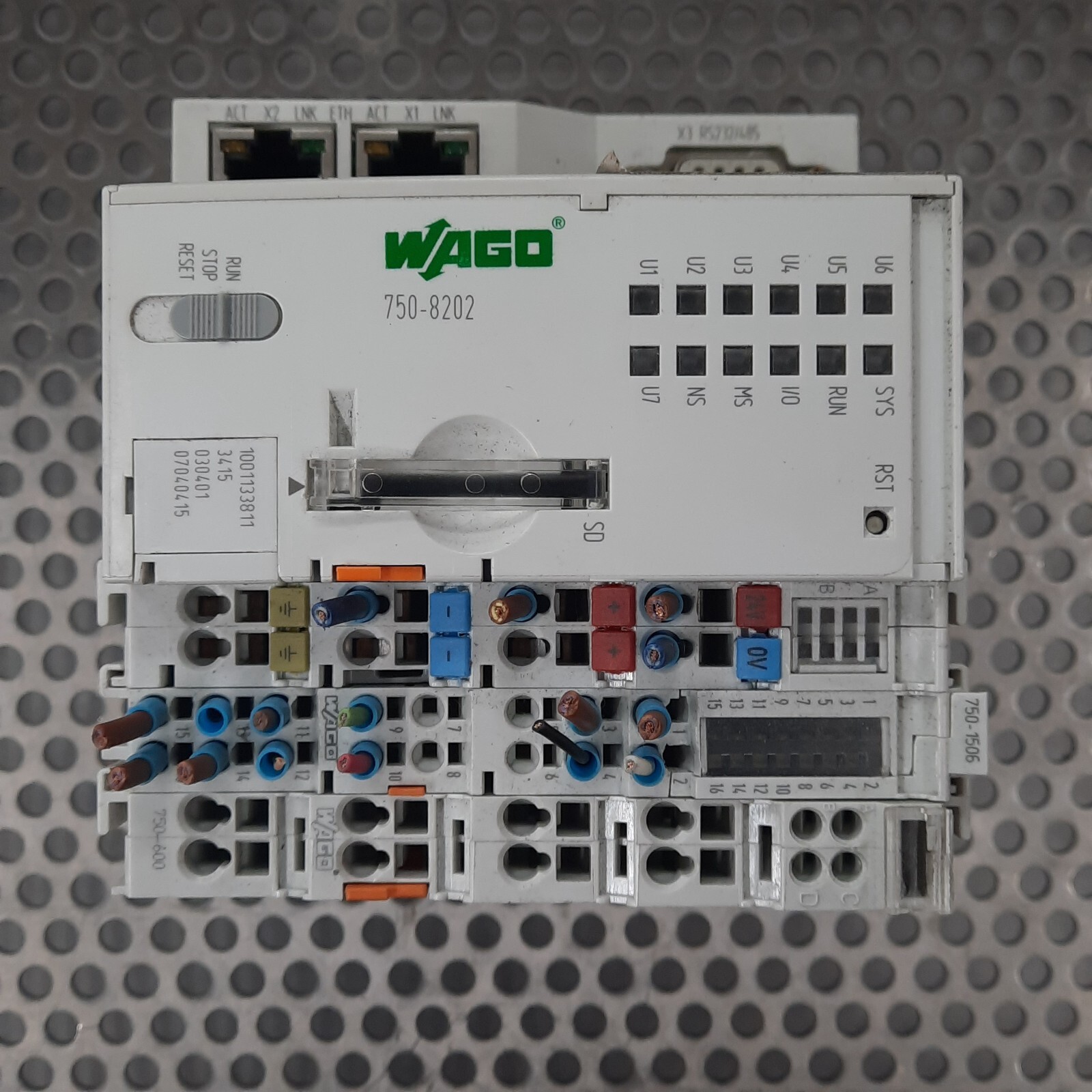

WAGO 750-8202 PFC200 Controller with Modules: 750-1506 & 750-600
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Brand | WAGO |
| Type | CENTERAL PROCESSOR UNIT |
| Includes Modules | 750-1506 & 750-600 |
| Model | WAGO 750-8202 |
| MPN | 750-8202 |
| Controller Platform | Feldbuscontroller |
| Country/Region Of Manufacture | Germany |
DESCRIPTION WAGOPart# 750-8202 PFC200 Controller with Modules: 750-1506 & 750-600 Product Condition:USED, tested and guaranteed to be in good working condition Specifications:Technical dataCommunicationModbus (TCP, UDP)ETHERNETModbus RTURS-232 serial interfaceRS-485 interfaceETHERNET protocolsDHCPDNSNTPFTPFTPSSNMPHTTPHTTPSSSHVisualizationWeb-VisuOperating systemReal-time Linux (with RT-Preempt patch)CPUCortex A8; 600 MHzProgramming languages per IEC 61131-3Instruction List (IL)Ladder Diagram (LD)Function Block Diagram (FBD)Structured Text (ST)Sequential Function Chart (SFC)Programming environmente!COCKPIT (based on CODESYS V3)WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)Configuration optionse!COCKPITWAGO-I/O-CHECKWeb-Based Managemente!RUNTIME libraryCODESYS LibraryBaud rate (communication/fieldbus 1)10/100 Mbit/sBaud rateETHERNET: 10/100 Mbit/sTransmission medium (communication/fieldbus)ETHERNET: Twisted Pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable lengthMain memory (RAM)256MBInternal memory (flash)256MBNon-volatile hardware memory128kbyteProgram memoryCODESYS V2: 16 MB; CODESYS V3: 60 MB (Program and data memory (dynamically distributed))Data memoryCODESYS V2: 64 MB; CODESYS V3: 60 MB Program and data memory (dynamically distributed)Non-volatile software memory128kbyteNon-volatile software memory128.kbyteType of memory cardSD and SDHC up to 32 GB (all guaranteed properties only valid with the WAGO 758-879/000-001 Memory Card)Memory card slotPush-push mechanism; Cover lid (sealable)Number of modules per node (max.)250Number of modules without a bus extension (max.)64Input and output process image (internal) max.1000 words/1000 wordsInput and output process image (Modbus®) max.CODESYS V2: 1000 words/1000 wordsIndicatorsLED (SYS, RUN, I/O, U1 … U7) red/green/orange: Status of system, program, local data bus, status programmable by user (can be used via CODESYS library); LED (A, B) green: Status of system power supply, field supplySupply voltage (system)24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP® connection)Input current (typ.) at nominal load (24 V)550mATotal current (system supply)1,700mASupply voltage (field)24 VDC (-25 … +30 %); via power jumper contactsCurrent carrying capacity (power jumper contacts)10ANumber of outgoing power jumper contacts3Isolation500 V system/fieldConnection dataConnection technology: communication/fieldbusModbus (TCP, UDP): 2 x RJ-45; Modbus RTU: 1 x D-sub 9 socket; RS-232 serial interface: 1 x D-sub 9 socket; RS-485 interface: 1 x D-sub 9 socketConnection technology: system supply2 x CAGE CLAMP®Connection technology: field supply6 x CAGE CLAMP®Connection type 1System/field supplySolid conductor0.08 … 2.5 mm² / 28 … 14 AWGFine-stranded conductor0.08 … 2.5 mm² / 28 … 14 AWGStrip length8 … 9 mm / 0.31 … 0.35 inchesConnection technology: device configuration1 x Male connector; 4-polePhysical dataWidth78.6 mm / 3.094 inchesHeight71.9 mm / 2.831 inchesHeight from upper-edge of DIN-rail64.7 mm / 2.547 inchesDepth100 mm / 3.937 inchesMechanical dataWeight206gColorlight grayHousing materialPolycarbonate; polyamide 6.6Conformity markingCEEnvironmental requirementsAmbient temperature (operation)0 … +55 °CAmbient temperature (storage)-40 … +85 °CProtection typeIP20Pollution degree2 per IEC 61131-2Operating altitudewithout temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)Relative humidity (without condensation)95%Mounting positionHorizontal left, horizontal right, horizontal up, horizontal down, vertical top and vertical bottomMounting typeDIN-35 railVibration resistance4g per IEC 60068-2-6Shock resistance15g per IEC 60068-2-27EMC immunity to interferenceper EN 61000-6-2, marine applicationsEMC emission of interferenceper EN 61000-6-3, marine applicationsExposure to pollutantsPer IEC 60068-2-42 and IEC 60068-2-43Fire load2.551MJPermissible pollutant concentration H2S at a relative humidity < 75%10ppmPermissible pollutant concentration SO 2 at a relative humidity < 75%25ppmCommercial dataProduct Group15 (I/O System)eCl@ss 10.027-24-26-07eCl@ss 9.027-24-26-07ETIM 8.0EC000236ETIM 7.0EC000236Recupel TypeECCNNO DATAPU (SPU)1 pcsPackaging typeboxCountry of originDEGTIN4050821739463Customs tariff number8537109160End of Sale2020-12-31End of Production2021-01-05End of Delivery2021-01-15End of Service and Repair2022-12-31Environmental Product ComplianceCAS-No.12060-00-31303-86-21317-36-8693-98-17439-92-179-94-7REACH Candidate List Substance2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol2-methylimidazoleDiboron trioxideLeadLead monoxideLead titanium oxide (PbTiO3)Perfluorobutane sulfonic acid (PFBS) and its saltsRoHS Compliance StatusCompliant,With ExemptionRoHS Exemption6(c)7(a)7(c)-I7(c)-IISCIP notification number (Austria)b6db88de-0ba5-4c8d-b499-6374a9de555bSCIP notification number (Belgium)3dad1662-1277-4ca8-a7ff-2e36316fcc68SCIP notification number (Bulgaria)7a77004f-182b-49ee-a6ca-3fad081b7266SCIP notification number (Czech Republic)a6a30ac2-939f-4093-9394-9f33cdb08287SCIP notification number (Denmark)ddb3f63f-af93-4bf3-a141-52c589339becSCIP notification number (Finland)1da90848-778a-4e90-9aa8-365987f84213SCIP notification number (France)938f1579-05c4-4f96-ae47-23fd156d35f7SCIP notification number (Germany)1abe7d15-6b77-4072-9854-d065ec85d958SCIP notification number (Hungary)b1128fc4-a5a4-4668-8e84-bdced21dcd73SCIP notification number (Italy)28155dba-0531-4f02-85d2-6cfccbccc057SCIP notification number (Netherlands)7c34b127-34c7-45ab-83d1-7512440f4cd0SCIP notification number (Poland)b123ea28-d24a-40ab-ab8d-6d18866fc825SCIP notification number (Romania)ef2ac11b-6815-41fe-a8c5-ba1b3c282665SCIP notification number (Sweden)241ff343-7a80-46e5-ba68-157eeecefc30 Shipping:Contact us with any shipping questions you may have.- We can provide overnight/next day delivery.- We do combine shipping.- We do ship worldwide. Ballard International is an asset company that specializes in industrial robotic systems, robot cells and replacement parts. We do our very best to describe items as accurately as possible and in no way would misrepresent or knowingly sell an item that was not working. Please contact us with any questions or concerns you may have, as your satisfaction is our highest priority.
