Ultra Low Noise Positive Discrete Voltage Regulator
Specifications
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Return Shipping Will Be Paid By | Seller |
| MPN | SS1117XX |
| Brand | Sparkos Labs |
| Country/Region Of Manufacture | United States |
| Model | SS1117XX |
| Device Function | Voltage Regulator |

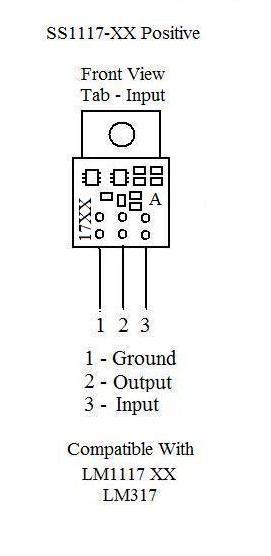

The SS1117XX discrete voltage regulator has a fixed output voltage that can range from +3.3V to +24V with over 1 Amp of available output current. It is designed to be pin compatible with LM1117XX devices and Adjustable Regulators such as the LM317. These devices can be used to replace the inferior monolithic voltage regulators in audio systems to improve power supply performance. They will outperform all monolithic voltage regulators in a TO-220 package in input rejection, output noise, transient response, and line and load regulation. Please send me a message to specify the desired output voltage when ordering. Anything from +3.3V to +24V is possible. A full engineering data sheet for these devices can be found here - SS1117XX discrete voltage regulator data sheet Features - 125dB Input Rejection3uV RMS Noise @5Vo, 5.8uVRMS Noise @ 15Vo (20Hz – 20KHz)Excellent Transient Response< 2V Dropout VoltageStable With Ceramic And Low ESR Output Capacitors1 Amp Output Current (Internally Limited And Protected)Fully Discrete Design – Right Down To The Error AmplifierOn – Board 10uF Tantalum Polymer Output CapacitorPrecision Thin Film 0.1% Tolerance Resistors+/- 1.5% Output voltage accuracyAvailable With Positive Fixed Output Voltage Range Of 3.3V to 24V (specify when ordering)
