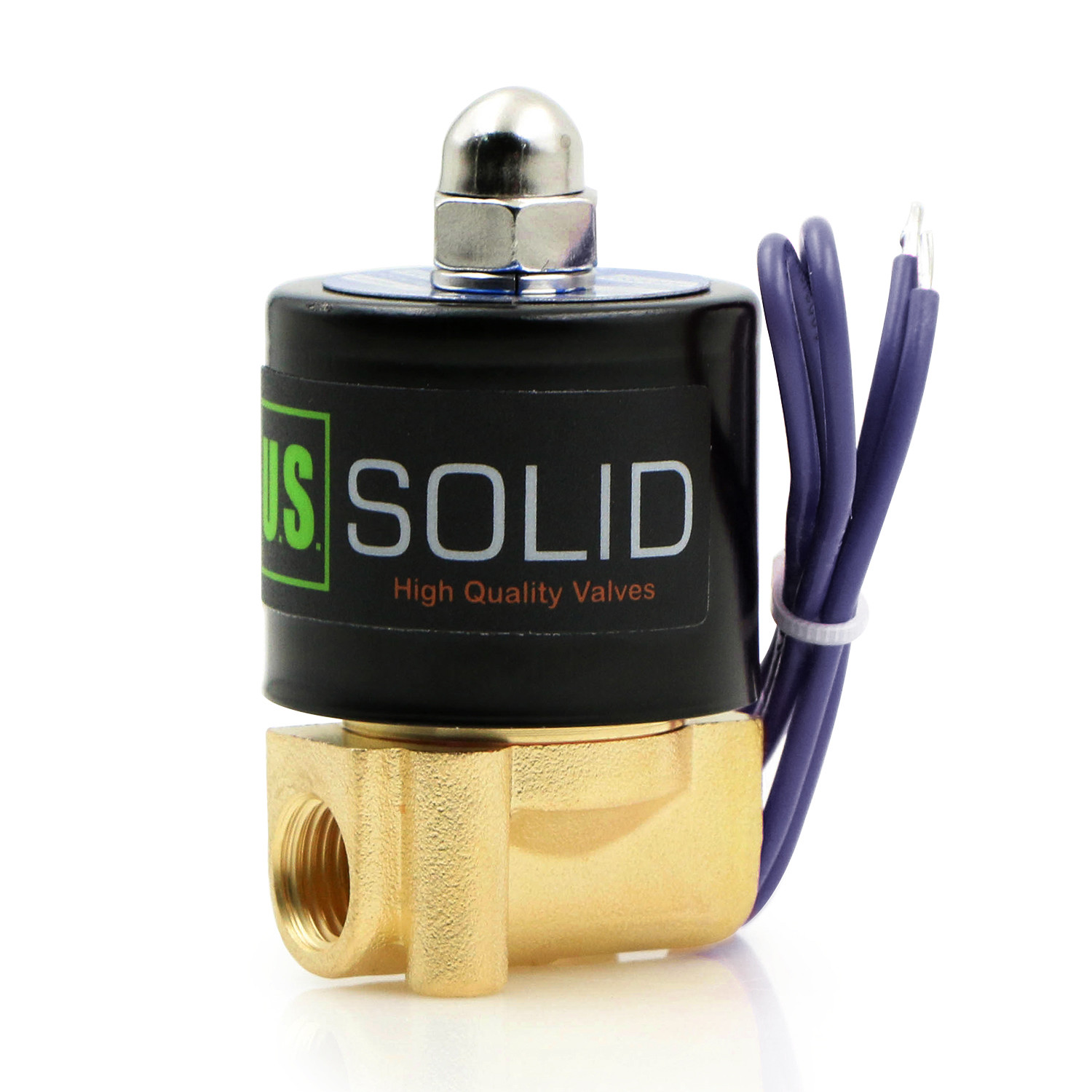

U.S. Solid Electric Solenoid Valve 1/4 inch Brass 12V DC
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | U.S. Solid |
| MPN | USS2-00051 |
| Valve Operation | Solenoid |
| Country/Region Of Manufacture | China |
This product is not designed for continuous operation(not a 100% duty cycle). While energized, under normal operating conditions, solenoid valve will get HOT. The coil will reach a maximum temperature of about 176℉ (80℃), which is fully complied with national standard JB/T7352-2010. If energized continuously for more than 8 hours the coil may burn. It can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. SPECIFICATIONS Brand U.S. SOLID Model USS2-00051 USS2-00300 PCS/CTN 1 45 Thread Size 1/4" Thread Type NPT Valve Bore 2.5mm Body Material Brass Gasket / Diaphragm / Seal Material VITON Operation Type Direct Lift Valve Operation Mode Normally Closed Voltage DC 12V ± 10% Current 1.167A ± 10% Power rating 14W ± 10% Suitable Media Air, Water, Oil, Diesel fuel, Kerosene etc. Operational Pressure Range Air/Water/Diesel fuel/Kerosene: 0 to 7bar (0 to 101psi); Oil: 0 to 5bar (0 to 72psi) Flow Coefficient 0.23Cv Temperature 14℉ to 248℉ (-10℃ to 120℃) Certification CE SHIPPINGAll orders will ship from within 5 business days of payment. Delivery may be delayed due to carrier delays and/or other issues.All of our customers are very important to us, if you have a delivery or quality problem, please do not open a case but contact us promptly via eBay message, we will try our best to resolve it with you. RETURN POLICYReturns are accepted within 30 days of the buyer receiving the item. Buyer is responsible for return shipping if it's not our fault. We will issue a refund within 2 business days of receiving the returned item.Returned items must be in their original condition, custom items cannot be returned.
