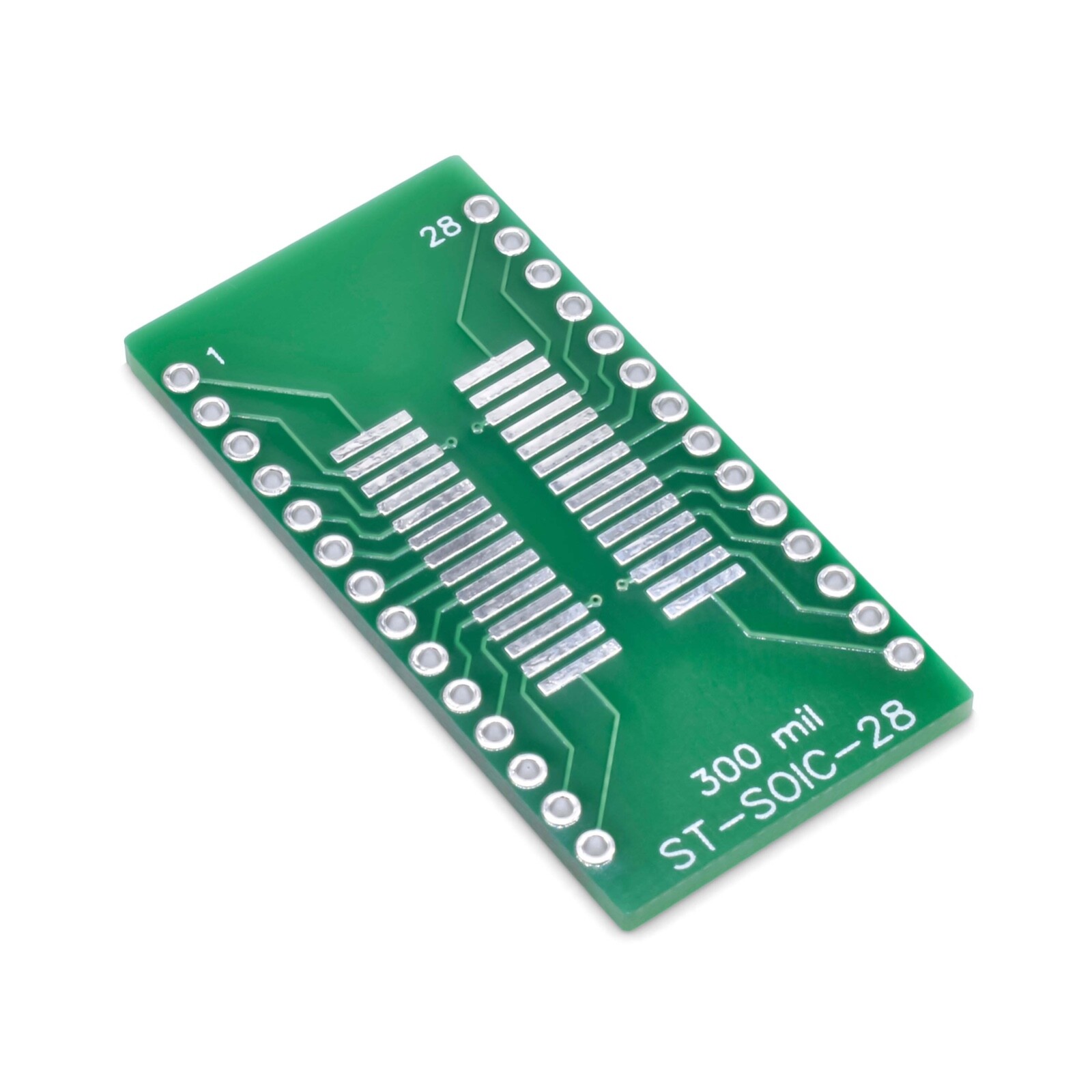

SOIC-28 / SOP28 SMD to DIP Adapter, PCB Breadboard Adapter ST-SOIC-28, 3 Pieces
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Mounting Style | Through-Hole |
| Brand | SchmalzTech |
| PCB Type | Double-Sided PCB |
| Type | Adapter |
| Material | FR-4 |
| MPN | ST-SOIC-28 |
| Item Length | 1.6" |
| Item Width | 0.8" |

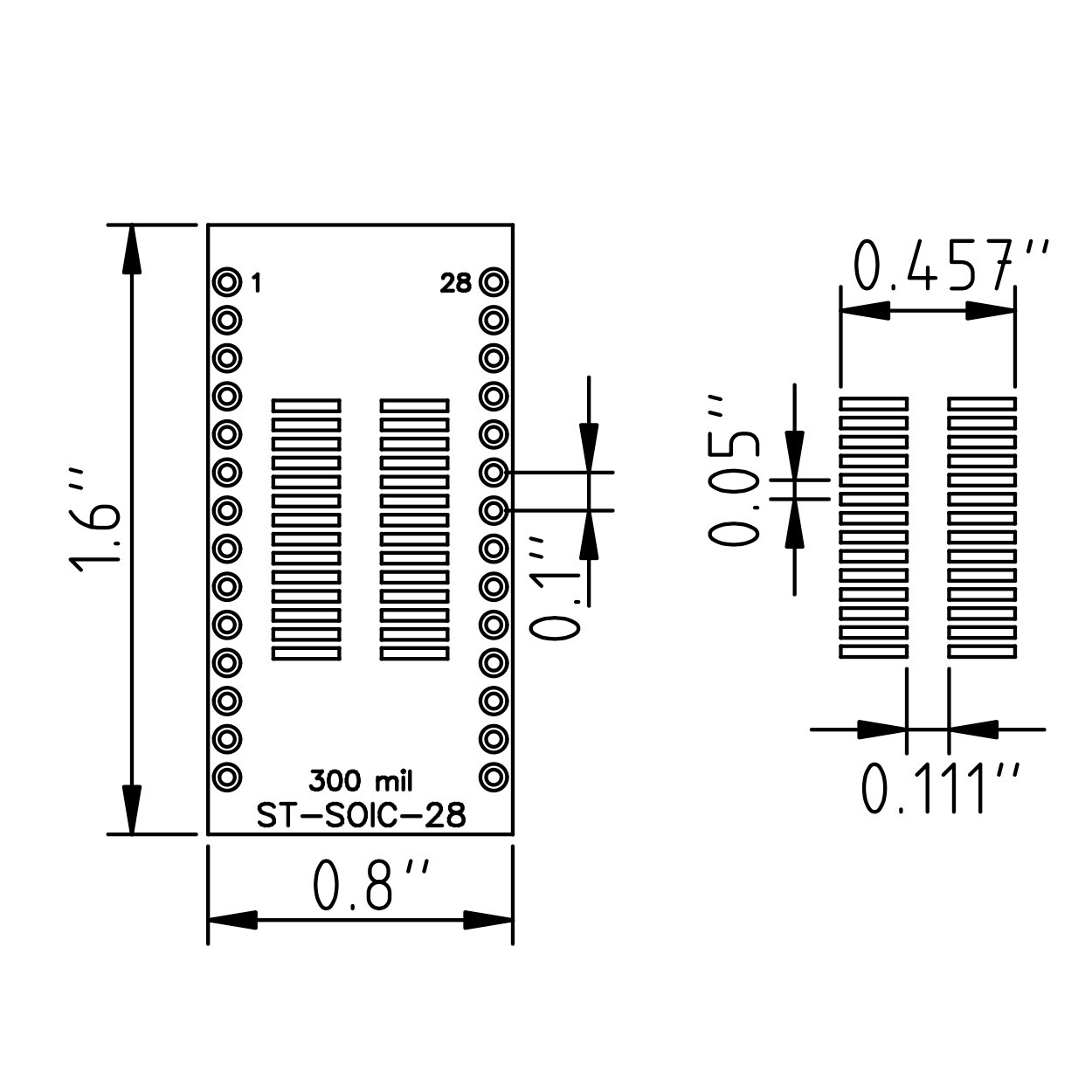

ST-SOIC-28 SOIC-28 / SOP28 SMD to DIP Adapter - 3 Pack Converts a SOIC-28 / SOP28 SMD part to a DIP form factorHigh quality PCB can withstand re-workEnables SMD parts to be used with a breadboard or perfboard0.1" pitch holes for standard headersItem sold in packs of 3 boards Specifications DIP Pitch0.1" SMD PackageSOIC-28, SOP28 Surface FinishLF HASL Temperature Rating-30°C to +100°C This SMD to DIP breakout board enables the easy conversion of a surface mount package to a DIP form factor. This adapter makes prototyping with surface mount parts fast and easy. Holes with a standard 0.1" pitch allow the board to work with common headers and enable SMD parts to be used in breadboards and perfboards. This board has an LF HASL surface finish and is made of high quality FR4 which can withstand high temperature soldering and re-work. Mechanical Drawings Electrical Connections Each pin of the SOIC-28 / SOP28 SMD part is electrically connected to one of the through hole connections on the SMD to DIP adapter board. Custom Designs Can't find what you need? We can design and produce a custom board to fit your exact needs. Please reach out to us for additional information and pricing. © 2022 SchmalzTech, LLC
