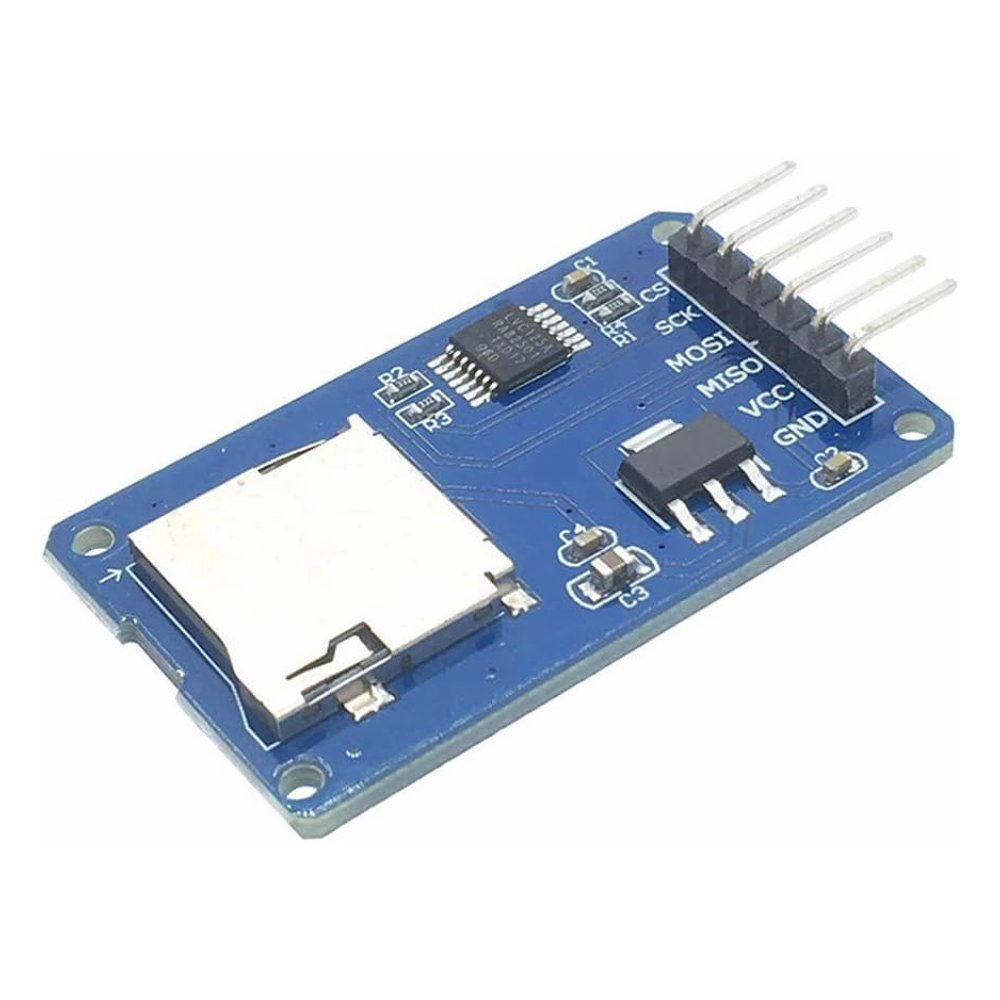

Micro SD TF Memory Card Reader Module with SPI interface For Arduino – US Stock
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| MPN | EM-OTHER-0001 |
| Country/Region Of Manufacture | China |
| Brand | Envistia |
| Type | Circuit Board |
Micro SD TF Memory Card Storage Board Module with SPI Interface For Arduino Micro SD card adapter module interfaces easily with Arduino and other microcontrollers to collect data for your projects you are running. It features an SPI interface via the file system driver to read and write files. Arduino users can directly use the Arduino IDE that comes with an SD card to complete the library card initialization and read-write. Features:Supports Micro SD (<=2G) and Micro SDHC (<=32G) cards (high-speed card)The level conversion circuit board can interface with 5V or 3.3V levelsThe power supply input (Vcc) is 4.5V to 5.5V. The module includes an AMS1117-3.3 3.3V voltage regulator circuit to support the 3.3V level requirementsThe communication interface is a standard SPI interface4x M2 screw positioning holes (2.2mm diameter) for easy installationSize: 41mm x 24mm Interface Description:Control Interface: Six pin header (GND, VCC, MISO, MOSI, SCK, CS)GND: GroundVCC: DC power supply input - 4.5V to 5.5VMISO, MOSI, SCK: SPI bus, CS: Chip select signal pinPackage includes:1x Micro SD TF Card Memory ModuleSpecifications and usage documentation Get it faster! We ship in 1 business day from our Colorado office for quick US delivery. Contact us for quantity/OEM pricing. Expand your DIY and Arduino-compatible development with these other Arduino-compatible development boards, shields and modules from Envistia Mall. We provide FREE USPS First Class Shipping with Tracking - Not Economy Shipping
