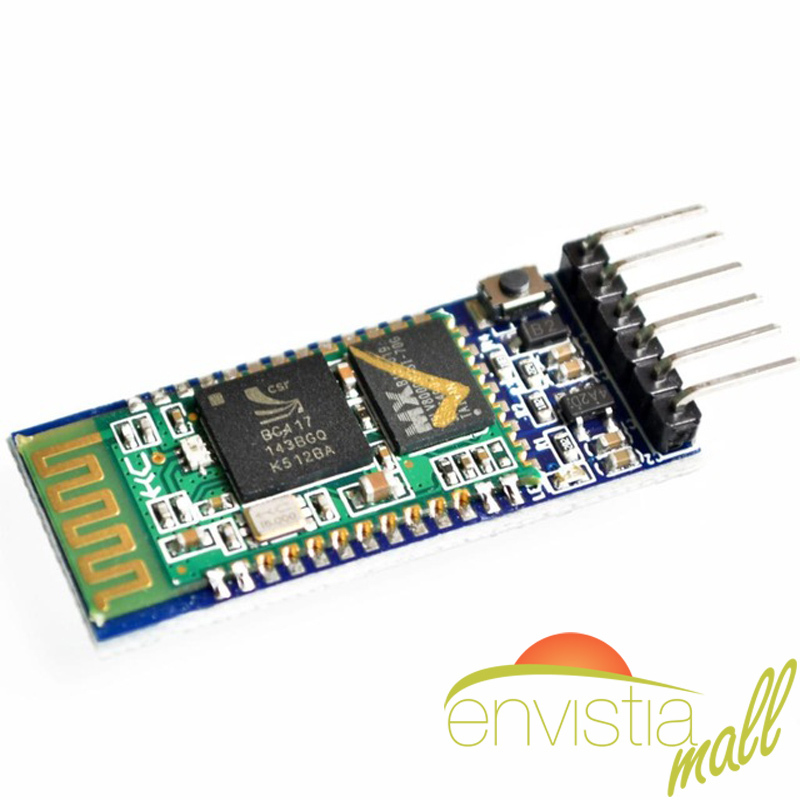

HC-05 Bluetooth Wireless RS-232 Master / Slave RF Transceiver Module for Arduino
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| MPN | EM-COMMS-0005 |
| Country/Region Of Manufacture | China |
| Brand | Envistia |
| Type | Bluetooth Module |
HC-05 6-Pin Bluetooth Wireless RS-232 Master / Slave RF Transceiver Module This HC-05 Bluetooth RF transceiver module can be set as a transmitter or receiver. It can easily transfer data wirelessly, without complex PCB layout or deep knowledge in the Bluetooth software stack. You can combine this Bluetooth module with your MCU, ARM or DSP systems, SOC systems, Personal Digital Assistants (PDAs), Computer Accessories or other systems your want to use under Bluetooth functions. The HC-05 Bluetooth module can connect to other modules in two ways: As a master, or as a slave. For example, a robot can be designed to be a master connected to a slave Bluetooth module or as a slave board to make a wireless connection with a PC. Specifications:Integrated Bluetooth Serial Pass-through Module Master-Slave 6 Pin JY-MCU anti-reverseHigh frequency: 2.4GHzWith VCC, GND, TXD, RXD, EN, STATE foot for the BluetoothMaster and slave, two modes in one moduleUses the CSR mainstream bluetooth chipBluetooth V2.0 protocol standardsInput voltage: 3.6V to 6V, on-board chip regulates working voltage to 3.3VFully compatible with ArduinoHigh speed: Asynchronous: 2.1Mbps(Max) / 160 kbps, Synchronous: 1Mbps/1MbpsTTL data transparentTransfer between a host Bluetooth deviceItem Weight: 0.2 ouncesWorks for Bluetooth TTL transceiver module which allows your target device to both send or receive the TTL data.Coverage up to 10 meters (30 feet) with built-in antenna.Working current: When unpaired, current of about 30mA; when pairing is successful, current reduces to about 10mAPCB Dimensions: 37mm x 15.5mm Wiring connections: EN / VCC / GND / RXD / TXD / STATE (Bluetooth status leads to the foot, unconnected output low, output high after the connection). Status indicator: Flashing LED means no Bluetooth connection; slow flashing LED for the AT command mode. Interface level 3.3V, can be directly connected to various microcontrollers (Arduino / 51 / AVR / PIC / ARM / MSP430 etc.), 5V microcontroller can also be directly connected. Direct connection should be made though the microcontroller serial port, not through MAX232 chip. Open area effective transmission distance of 10 meters (30 feet), greater distance is possible, but connection quality may degrade. After the pairing is successful, can be used as a full-duplex serial interfaces. Without having to know any Bluetooth protocol, supports 8 data bits, 1 stop bit, no parity communication format. This is the most commonly used communication format. The module default baud rate is 9600, the default pairing password is 1234, the default name is HC-05 Press the button to power up the Bluetooth module and enter AT mode for setting parameters and query information. AT commands can be switched by the master and slave mode Package includes:1x HC-05 6-Pin Bluetooth module with backboardPrinted installation and operation instructions Get it faster! Ships in 1 business day from our Colorado office for quick delivery. Contact us for quantity/OEM pricing. Expand your DIY and Arduino-compatible development with these other Arduino-compatible development boards, shields and modules from Envistia Mall. We provide FREE USPS First Class Shipping with Tracking - Not Economy Shipping
