Digispark Kickstarter ATTINY85 Micro USB Development Board
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | Envistia |
| Series | Digispark |
| RAM Size | 8 KB |
| Features | USB |
| Country/Region Of Manufacture | China |
| Core | ATMEL ATtiny85 |

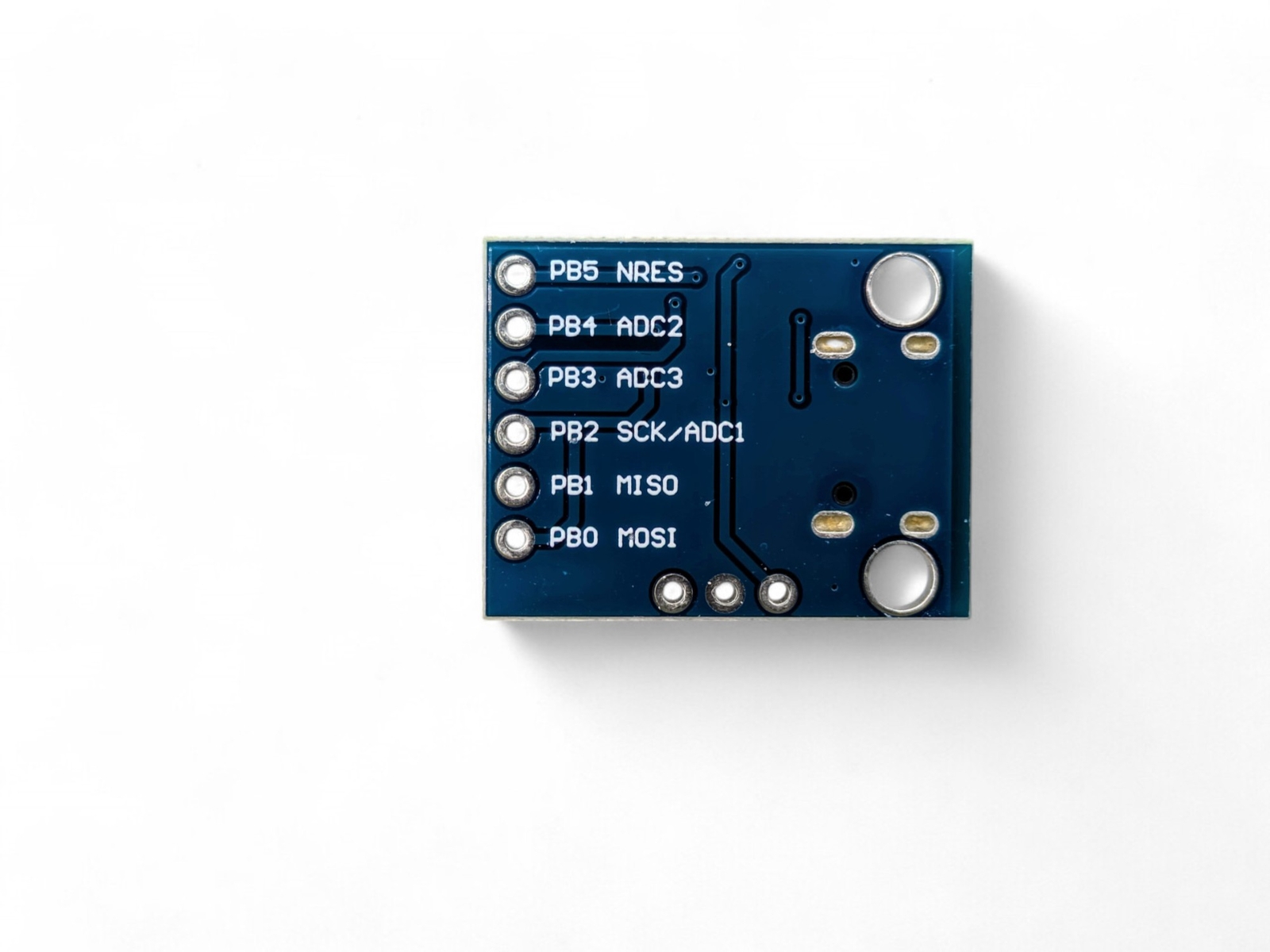

Digispark Kickstarter ATTINY85 Micro USB Development Board This is a modification to the standard Digispark board using a Micro USB port rather than USB pins as part of the PCB. This makes it easier and more cost-effective, as it can be connected to the PC using a standard MicroUSB cable. Digispark is a tiny, Arduino-compatible development board using the ATMEL ATtiny85 microcontroller. It has its own USB bootloader and built in USB capability, allowing you to program it with the Arduino SDK and also use it as native USB device. It is similar to the Arduino line, only cheaper, smaller, and a bit less powerful. With the ability to use the familiar Arduino IDE, the Digispark is a great way to jump into electronics, or perfect for when an Arduino is too big or too much. Digispark Kickstarter ATTINY85 Micro USB Features: Support for the Arduino IDE 1.0+ (OSX/Win/Linux)Power via USB or External Source - 5V or 7-16V (12v or less recommended, automatic selection)On-board 500ma 5V RegulatorBuilt-in USB (and serial debugging)ATMEL ATTiny85 processor6 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB)8k Flash Memory (about 6k after the bootloader, which is already installed)I2C and SPI (vis USI)PWM on 3 pins (more possible with Software PWM)ADC on 4 pinsPower LED and Test/Status LEDSize: 23mm x 17.5mmPackage Includes:1 x Digispark ATtiny85 MicroUSB Development Board with connector pinsLink to online specifications and usage documentation Get it faster! Stocks and ships from our US Colorado office for quick delivery. Contact us for quantity/OEM pricing. We provide FREE USPS First Class Shipping with Tracking - Not Economy Shipping
