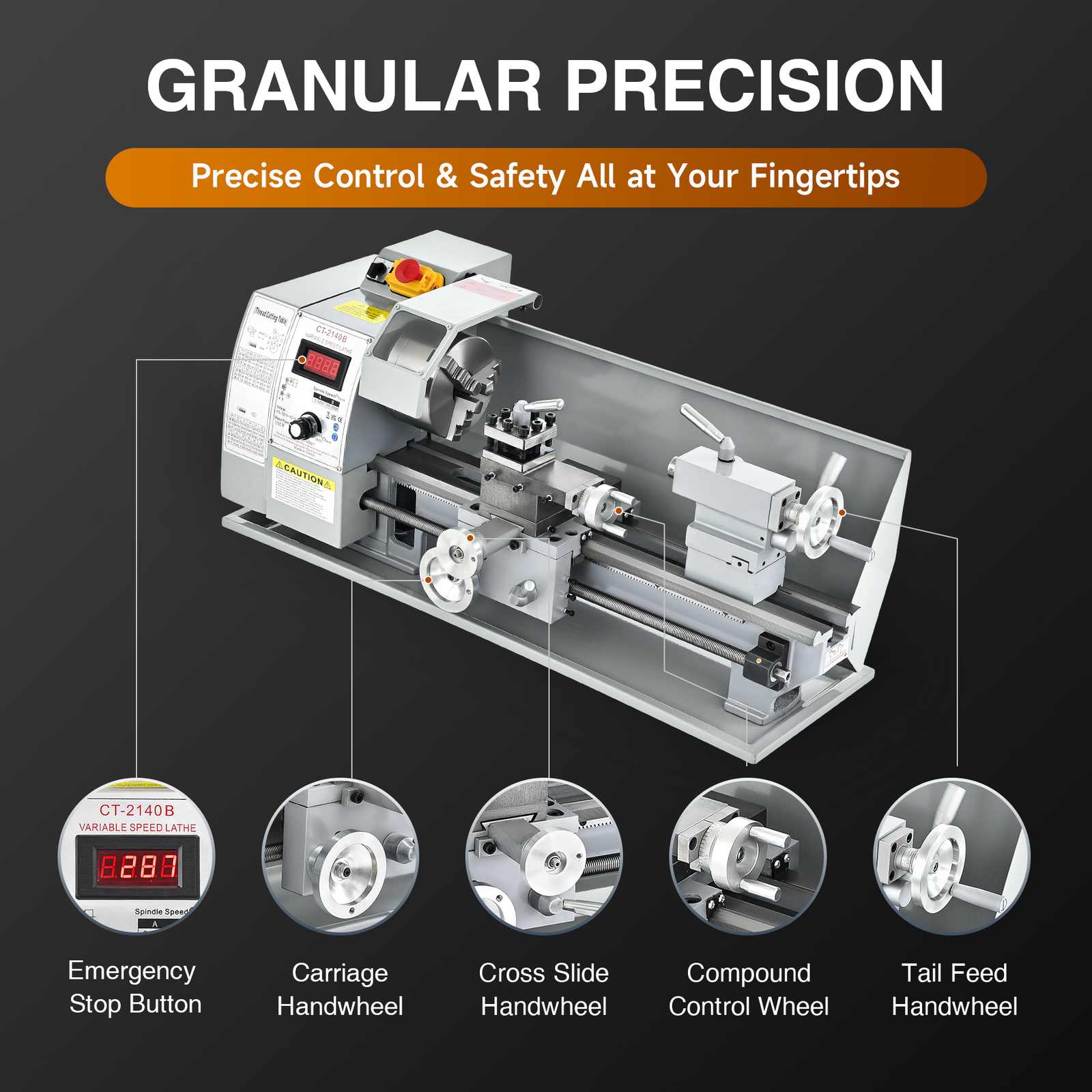

CREWORKS 8×16″ Mini Metal Lathe Brushless 1100W 2250rpm 2-Chucks Tool Bundle
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Creworks |
| Control | Semi-Automatic |
| Treated Material | Metal |
| Machine Type | Metal Lathe |
| Net Weight | 158.7 lb (72 kg) |
| Package Weight | 168 lb (76 kg) |
| Swing Over Bed | 210mm (8") |
| Distance Between Centers | 400mm (16") |
| MPN | Does Not Apply |
| Motor Type | Brushless |
| Motor Power | 1½ HP (1100W) |
| Voltage | 110V/60Hz |
| Overall Dimensions | 32.3″ × 13.6″ × 17 |
| Spindle Bore | 1.5″ (38 mm) |
| Chuck Diameter | 4.92″ (125 mm) |
| Spindle Taper | MT#5 |
| Tailstock Taper | MT#2 |
| Spindle Speed | 50–2250 RPM (±10%) |
| Spindle Accuracy | ±0.0004″ (±0.01 mm) |
| Gear Material | Metal |
| Inch Thread | 8–44 TPI |
| Metric Thread | 0.5–3 mm |
| Package Size | 37″ × 19″ × 18.5″ |
Specifications Material: Steel Gear Material: Metal Color: Gray Motor Type: Brushless Motor Power: 1.5 HP (1100W) Dimensions: 32 x 13.6 x 16.9 in. (82x34.5x43 cm) Spindle Bore: 1.5 in. (38 mm) Swing over Bed: 8.3 in. (210 mm) Distance between Centers: 15.7 in. (400 mm) Chuck Diameter: 5 in. (125 mm) Spindle Speed Range: 0-2250 rpm Inch Thread Range: 8-44 tpi Metric Thread Range: 0.5-3 mm Spindle Taper: MT#5 Tailstock Taper: MT#2 Net Weight: 150 lb. (68 kg) Packing List 1x Mini Lathe 1x Chuck Wrench 1x 3-Jaw Chuck 1x 4-Jaw Chuck 2x Screwdrivers 3x Spanners 6x Metal Gears 1x Oil Bottle 5x Hex Wrenches 1x Dead Center 3x Slideway Levers 1x Tool Box 1x Steady Rest 1x Follow Rest 9x Brazed Carbide Tools 4x Measuring Tools 1x Instructions Mini Yet Mighty: This multifunctional mini metal lathe by Creworks packs a punch with its 1100W brushless motor, 8.3" swing over bed, 15.7" distance between its centers, and a 1.5" spindle bore, perfect for small to medium metalworking projects. Complete Control: The stepless speed adjustment allows settings up to 2250 rpm and can be monitored through the digital display. The robust metal gears and tailstock ensure efficient power transmission, while the 4-way tool post lets you change cutting tools and offsets for easy beveling. Precise Engineering: The high-precision 5" 3-jaw and 4-jaw self-centering chucks handle both square and round objects with equal aplomb. The MT5 spindle taper ensures tools are held securely during operation and MT2 tailstock taper provides support for long or heavy workpieces. Ultra Sturdy & Safe: Crafted from high-strength steel, our benchtop metal lathe ensures a long service life and superior corrosion resistance. It features an emergency stop for immediate halting of operations and a transparent chuck guard for protection against swarf and broken tools. Wide Application: Our mini metal lathe is ideal for many processing tasks needing extreme precision, including turning, drilling, threading, and cutting. Its capabilities extend to various materials, including wood, plastics, brass, aluminum, and more! Specifications Material: Steel Gear Material: Metal Color: Gray Motor Type: Brushless Motor Power: 1.5 HP (1100W) Dimensions: 32 x 13.6 x 16.9 in. (82x34.5x43 cm) Spindle Bore: 1.5 in. (38 mm) Swing over Bed: 8.3 in. (210 mm) Distance between Centers: 15.7 in. (400 mm) Chuck Diameter: 5 in. (125 mm) Spindle Speed Range: 0-2250 rpm Inch Thread Range: 8-44 tpi Metric Thread Range: 0.5-3 mm Spindle Taper: MT#5 Tailstock Taper: MT#2 Net Weight: 150 lb. (68 kg) Packing List 1x Mini Lathe 1x Chuck Wrench 1x 3-Jaw Chuck 1x 4-Jaw Chuck 2x Screwdrivers 3x Spanners 6x Metal Gears 1x Oil Bottle 5x Hex Wrenches 1x Dead Center 3x Slideway Levers 1x Tool Box 1x Steady Rest 1x Follow Rest 9x Brazed Carbide Tools 4x Measuring Tools 1x Instructions Mini Yet Mighty: This multifunctional mini metal lathe by Creworks packs a punch with its 1100W brushless motor, 8.3" swing over bed, 15.7" distance between its centers, and a 1.5" spindle bore, perfect for small to medium metalworking projects. Complete Control: The stepless speed adjustment allows settings up to 2250 rpm and can be monitored through the digital display. The robust metal gears and tailstock ensure efficient power transmission, while the 4-way tool post lets you change cutting tools and offsets for easy beveling. Precise Engineering: The high-precision 5" 3-jaw and 4-jaw self-centering chucks handle both square and round objects with equal aplomb. The MT5 spindle taper ensures tools are held securely during operation and MT2 tailstock taper provides support for long or heavy workpieces. Ultra Sturdy & Safe: Crafted from high-strength steel, our benchtop metal lathe ensures a long service life and superior corrosion resistance. It features an emergency stop for immediate halting of operations and a transparent chuck guard for protection against swarf and broken tools. Wide Application: Our mini metal lathe is ideal for many processing tasks needing extreme precision, including turning, drilling, threading, and cutting. Its capabilities extend to various materials, including wood, plastics, brass, aluminum, and more! On Jun 19, 2024 at 04:26:49 PDT, seller added the following information:
