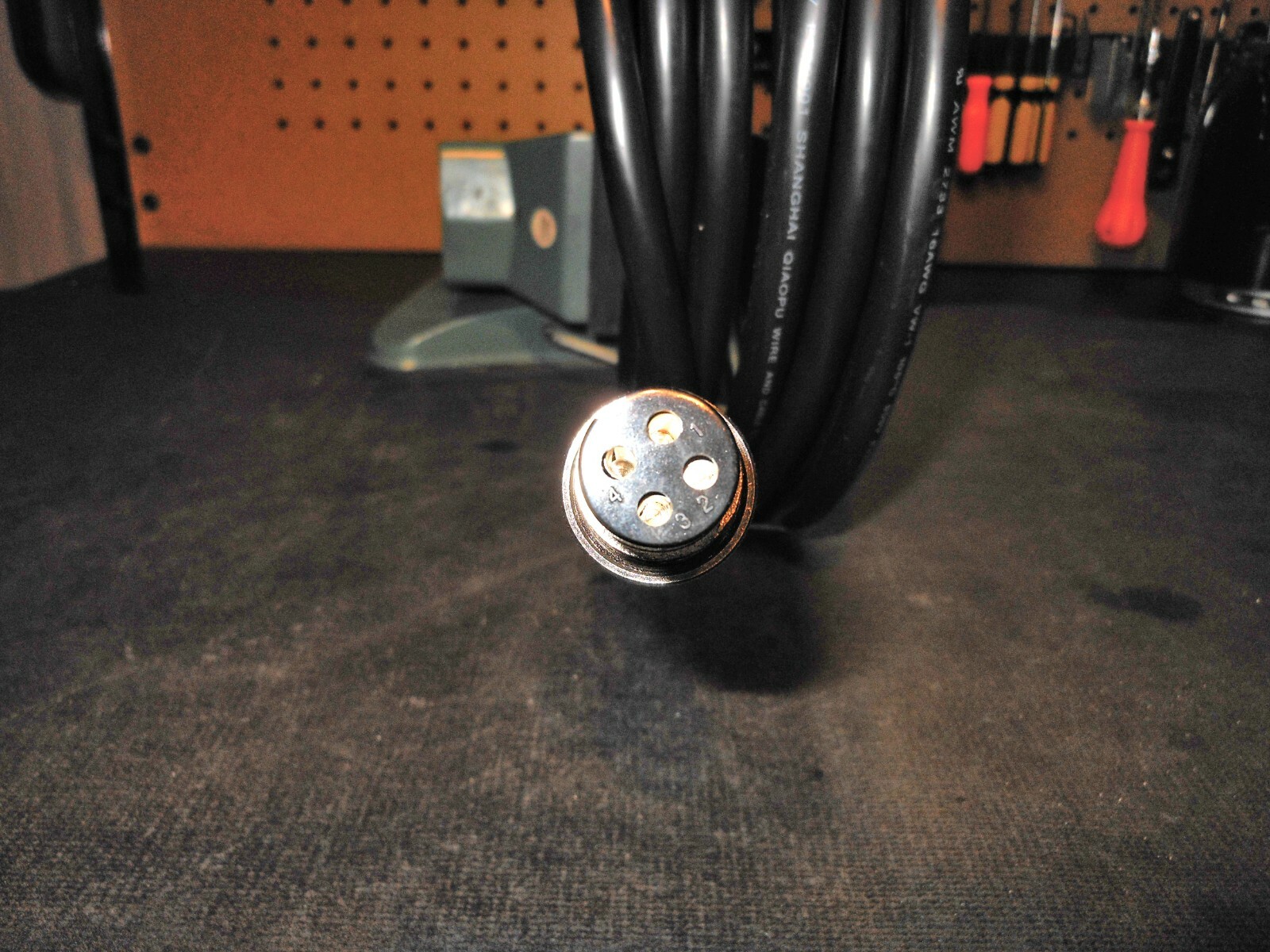

CNC Assembled 20ft. 2.2Kw VFD Cable (Built With 16/4 Double Shielded Cable)
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Brand | eDealers Direct |
| Custom Bundle | Yes |
| Model | HY Black Connector |
| Input Voltage | 110v-220v |
| Number Of Axes | 1-8 |
Please review the entire listing, and all videos carefully to understand the gravity of this package.Custom made spindle cable's all carry a 25% restocking fee on any returns due to purchase's made by mistake because of buyers not checking their spindle's female connector to assure compatibility prior to ordering.Please forward me a picture of your spindle's female connector to assure compatibility with your spindle to save you time, and money.This listing is for a completely built ready to plug in CNC spindle cable for your HY your spindle. This cable is built using the following components below. 20Ft. piece of 16AWG 4 lead Double Shielded Robotics Grade Spindle Cable. (This cables outer diameter is 10.5mm with a minimum bend radius of 3.5in)13mm diameter (600v 125c) temp rated heatshrink (single wall for flexibility) (This is to build your VFD's end boot that goes around your leads). 13mm diameter (600v 125c) temp rated heatshrink (double wall with adhesive) (This is for the spindle connector's end termination)4 4mm solder type ring connectors with 4 matching pre-cut 3mm (600v 125c temp rated) heatshrink pieces for insulation to provide proper VFD end termination 18awg green silicone drain wire (200c temp rated) This cable is rated to 600v, and 105 degrees Celsius (221 degrees Fahrenheit) This cable is designed for your spindle to VFD connection to protect your CNC system from EMI penetration. This cable is professional Robotics grade, and features both Mylar foil, and tinned braided copper shielding with twine separator in the center of the four conductors, and 16awg ground drain lead for the minimal electrical resistance. The conductors are also tinned braided copper for maximum conduction.The amp rating chart below reflects the cables capacity based on the conductors insulation rating temperature.I can offer this cable in any size you require. Please message me for pricing. This cable ships UPS ground delivery for US orders. Expedited shipping is also available please message me for pricing to your location.Eliminate EMI signal contamination from the beginning making your system "Bullet Proof" with the proper cable.Please review the video below for an overview of me discussing this component to know exactly what your purchasing. The video below is the overview on the cable's overview, and assembly. Assembled 2.2Kw Spindle Cables In Custom Lengths... Video will open in a new window Using the eBay App? Paste link into a browser window: [isdntekvideo]
