5 Pcs HC-SR501 PIR IR Passive Infrared Motion Detector Sensor Module DIY
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Country/Region Of Manufacture | China |
| Sensing Method | Passiveinfrared |
| Actual Field Of View | 120 degrees |
| Sensor Type | Solid State |
| Nominal Sensing Radius | 21 ft |
| Output Type | Analog |
| Nominal Field Of View | 120° |
| MPN | EM-SENSR-0004-5X |
| Brand | Envistia |
| Termination Type | Connector |

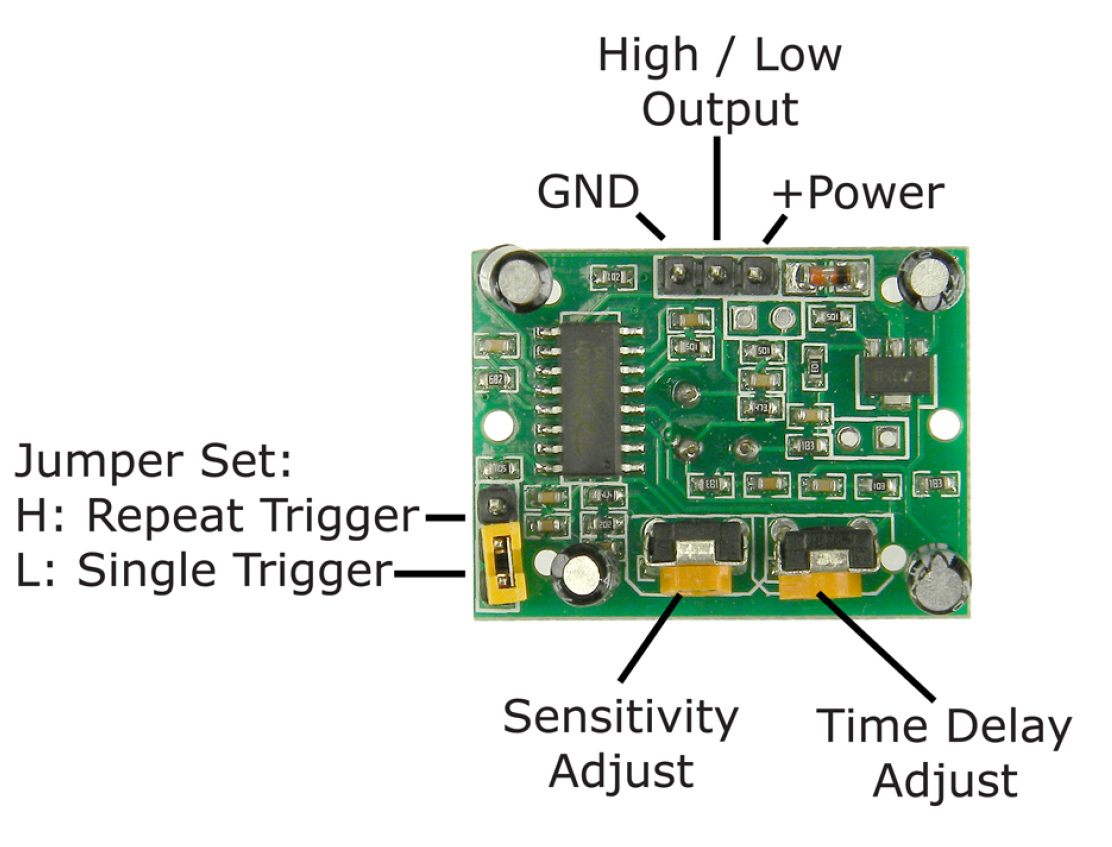

5 Pieces HC-SR501 PIR Motion Detector Sensor Passive Infrared Receiver Module Wide Angle, Long Range The HC-SR501 PIR motion detector is based on infrared technology and features high sensitivity, high reliability and ultra-low-voltage operating mode. Great for use with microcontrollers such as Arduino, Digispark and Rasberry Pi, it can be used for automatic-on lighting, automatic starting, anti-theft security alarm and many other motion detection applications. It is widely used in various auto-sensing electrical equipment, especially for battery-powered automatic controlled products. The module features adjustable sensitivity that allows for a motion detection range from 3 meters to 7 meters, and also includes time delay adjustments and trigger selection that allow for fine tuning within your application. Specifications:Working Voltage: 5V to 20V DCStatic (quiescent) current: <60uAOutput signal: High level 3.3V, low level 0VTime Delay: Adjustable (3s~300s)Blockage time: 0.2sDetectable Area: <120°/7M (max)Sensitivity: AdjustableOperating Temperature: -15° to +70°CPCB Size: 32mm x 24mmInduction Lens Size (Diameter): 23mm Package Includes: 5X HC-SR501 PIR Motion Sensor Passive Infrared Receiver ModuleLink to online usage and operation instructions Get them faster! Stocks and ships from our Colorado office for quick US delivery. Please contact us for quantity/OEM pricing. See the video review of this HC-SR501 module by JohnAudioTech on Youtube. We provide FREE USPS First Class Shipping with Tracking - Not Economy Shipping
