4V-38V to 1.3V-36V 8A Step Down Buck Power Supply Module w/ Voltmeter XL4016 US
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Country/Region Of Manufacture | China |
| Plug Type | Terminal Block |
| Mounting Style | Stand Alone |
| Nominal Power Rating | 200 W |
| Output Voltage Rating (DC) | 1.3 V to 36 V |
| Installation Area | Indoor |
| Inrush Current Rating | 8 A |
| Protection Properties | Overcurrent Protection |
| Nominal Voltage Rating (DC) | 4 V to 38 V |
| Nominal Current Rating | 5 A |
| Brand | Envistia |
| Output Voltage Range | 1.3V - 36V |
| Device Function | Voltage Converter |
| Product Type | Power Converter |
| Conversion Direction | Step-Down |
| Input Voltage Range | 4V - 38V |
| Current Conversion | DC to DC |

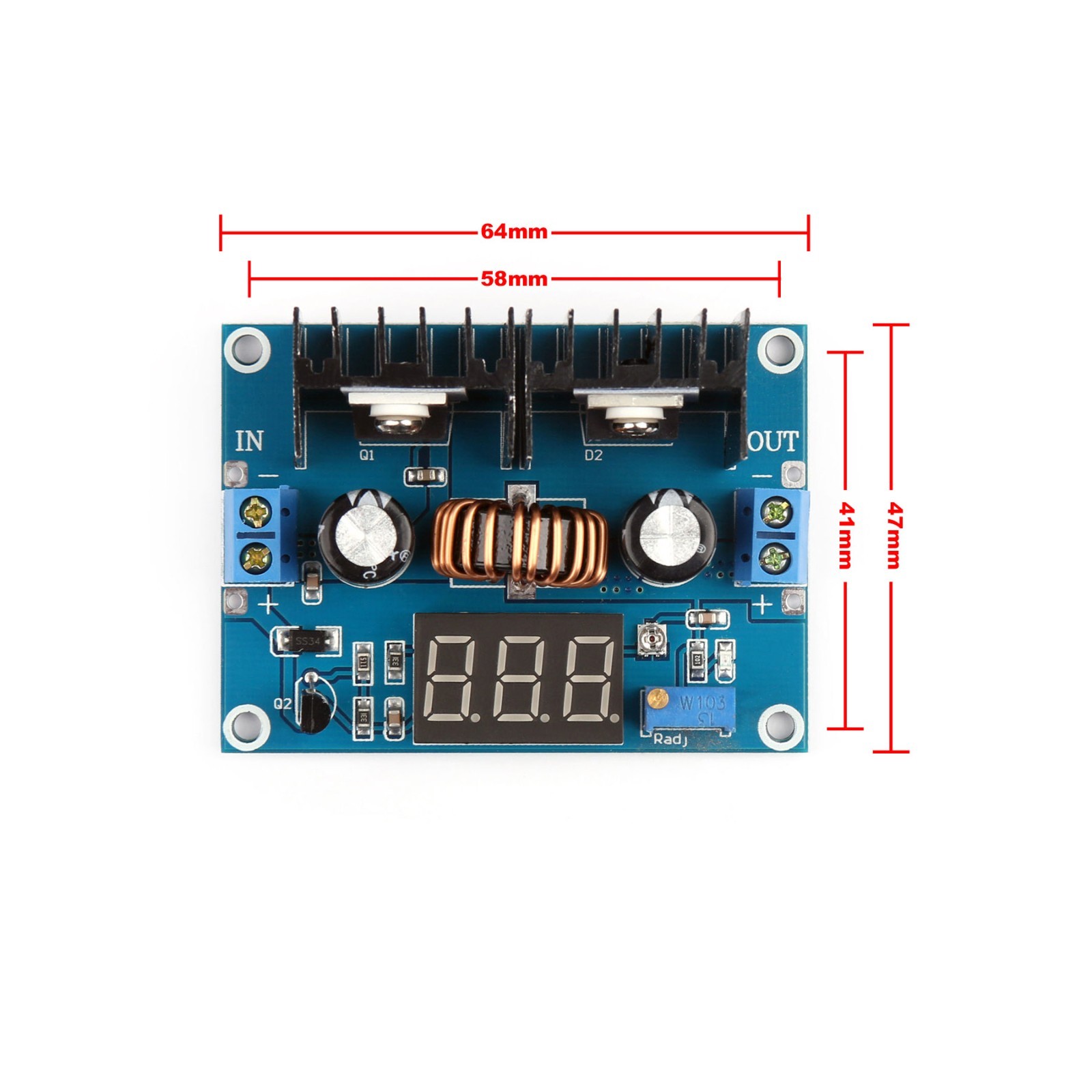

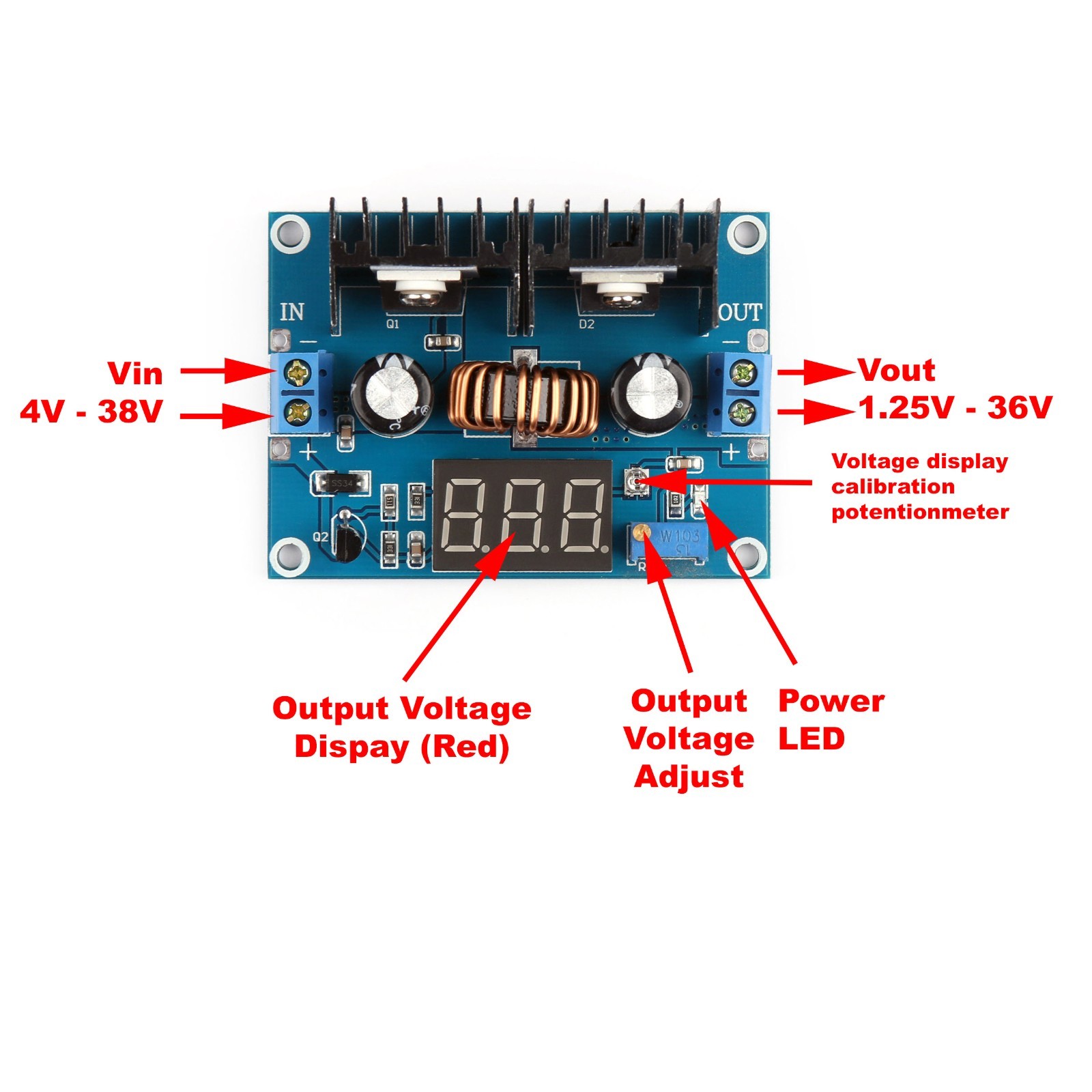

8A XL4016 / XH-M404 DC-DC Adjustable 4V to 38V Input 1.3V to 36V Output Step Down Buck Power Supply Module With Digital Voltage Display / Voltmeter This PWM buck (step-down) DC/DC converter module provides 1.3V to 36V continuously adjustable output voltage at up to 8A peak / 5A continuous current with high efficiency, low ripple and excellent line and load regulation. An onboard multi-turn potentiometer is used to adjust the output voltage level. It features a 3-character digital display which displays the output voltage. An onboard trim potentiometer can be used to calibrate the display if needed. This module is ideal for regulating 12V, 18V or 24V battery voltage down to the 12V, 9V, 5V or 3.3V levels required by many electronic circuits. For example, it could step a 12V car battery down to 5V for USB-powered devices such as cell phones or Arduino microcontrollers. Specifications:Input voltage range: 4V to 38VDCOutput voltage range: 1.3V to 36VDC adjustable via onboard multi-turn potentiometerOutput current: 0A to 5A continuous, 8A peakMaximum output power: 200W Efficiency: Up to 94%Built in thermal shutdown functionBuilt in current limit functionBuilt in output short protection functionDimensions (approximate): 64mm x 47mm 26MM (L x W x H)Weight: 45gThis is a buck (step-down) converter, therefore the input voltage must be at least ~2V greater than the output voltage. Package includes:1X (1 piece) XL4016 DC-DC Adjustable Step Down Buck 1.3V-36V 8A Power Supply ModuleLink to online installation and operation instructions Get it faster! Stocks and ships from our US Colorado office for quick delivery. We provide FREE USPS First Class Shipping with Tracking - Not Slow Economy Shipping
