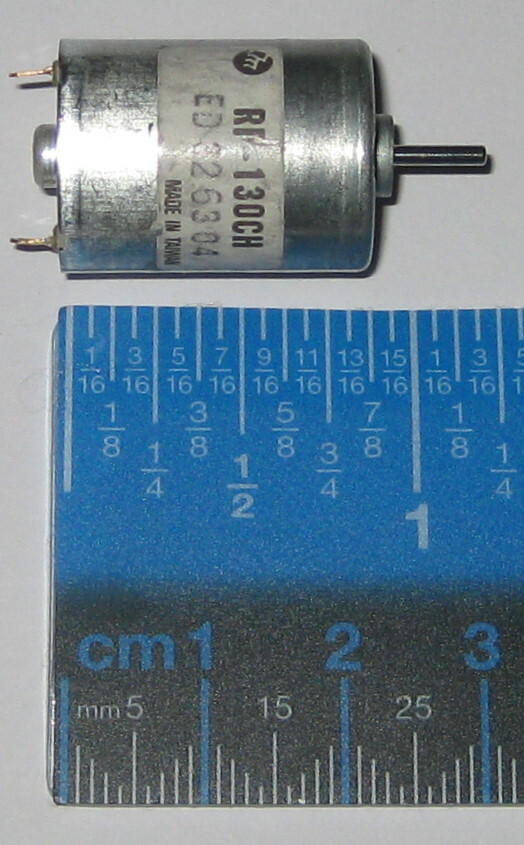

2 X Mabuchi RF-130 Small Appliance DC Motor – 6 VDC – 8,100 RPM – RF-130CH-12250
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Full Load Amps | 0.16 A |
| MPN | RF-130CH-12250 |
| DC Stator/Winding Type | Permanent Magnet |
| Shaft Type | Straight |
| Nominal Rated Input Voltage | 6 V |
| Model | RF-130CH-12250 |
| Starting/Locked Rotor Torque | 42 g-cm |
| Reversible/Non-Reversible | Reversible |
| Rated/Full-Load Torque | 7.8 g-cm |
| Shaft Diameter | 1.5 mm |
| Base RPM | 8100 RPM |
| Brand | Mabuchi |

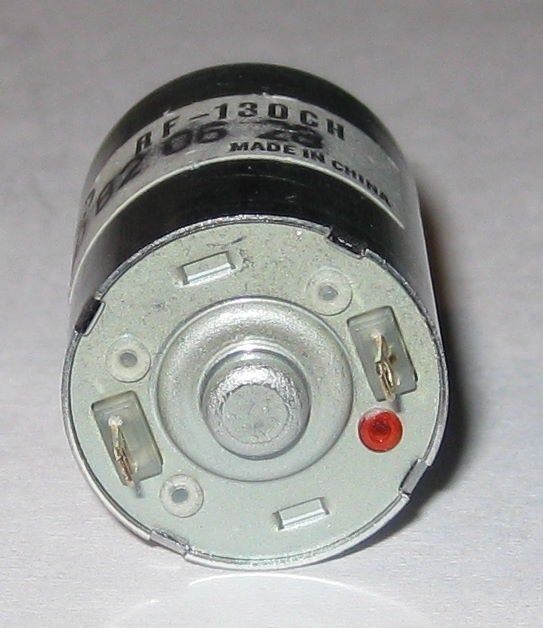

2 X Mabuchi RF-130 Small Appliance Motor - 6V DC - 8,100 RPM - RF-130CH-12250 Electric DC motors manufactured by Mabuchi You will receive 2 motorsModel RF-130CH-12250 Operates on 6 VDC nominal Will operate from 2VDC to 6VDC No load speed: 8,100 RPM No load current: 0.036 Ampere Full load (maximum efficiency @ 6VDC) performance characteristics: Speed: 6,600 RPM Current: 0.16 Amperes Torque: 7.8 g-cm (0.76 mN-m) Power output: 0.53 Watts Stall torque: 42 g-cm (4.12 mN-m) Stall current: 0.70 Amperes Can be operated in either direction, simply reverse power supply polarity Dimensions (not including shaft): 22.8 mm long x 17.1 mm diameter Shaft dimensions: 7.0 mm long x 1.5 mm diameter Comes with 2 solder eyelets for easy connection Features 2 threaded mounting holes (JIS M2.0x0.4) Typical applications: Home appliances Weight: 0.6 oz (18 grams) each
