17-4 PH Stainless Steel HEX Prairie Bolt #8-32 Thread 0.164″Ø 1.5″ Grip Length
USD 17.50 USD
Specifications
| Material | 17-4 PH Stainless Steel |
| MPN | ZPS44008C-24 |
| Finish | Plain Finish |
| Type | Prairie Bolt |
| Drive Type | Hex Socket |
| Grade | 17-4 PH |
| Brand | Accurate Manufacturing |
| Head Style | Flange Socket Cap Head |
| Thread Diameter (in.) | #8-32 Thread Size |
| Item Length | 1-1/2" Grip Length |
| Country/Region Of Manufacture | United States |
| Model | ZPS44008C24 |
| Shoulder Diameter | 0.164 inches |
| Shoulder Diameter Tolerance | -0.001"/-0.004" |
| Shoulder Length Tolerance | +0.005"/-0.005" |
| Thread Length | 3/16 inches |
| Head Height | 15/64 inches |
| Flange Diameter | 11/32 inches |
| ASIN: | VB00GKWHZEG |
The 17-4 PH stainless steel material provides good corrosion resistance and high strength. The material may be slightly magnetic. The flange socket cap head is round with a flat top and high profile that provides high strength.
Related Items
Graphite Powder Pure 44 microns – Uses include: dry lubricant, epoxy (Quart)
ZURN Drain Bucket: Aluminum, 8 7/8 in Overall Wd, 3 5/8 in Overall Ht

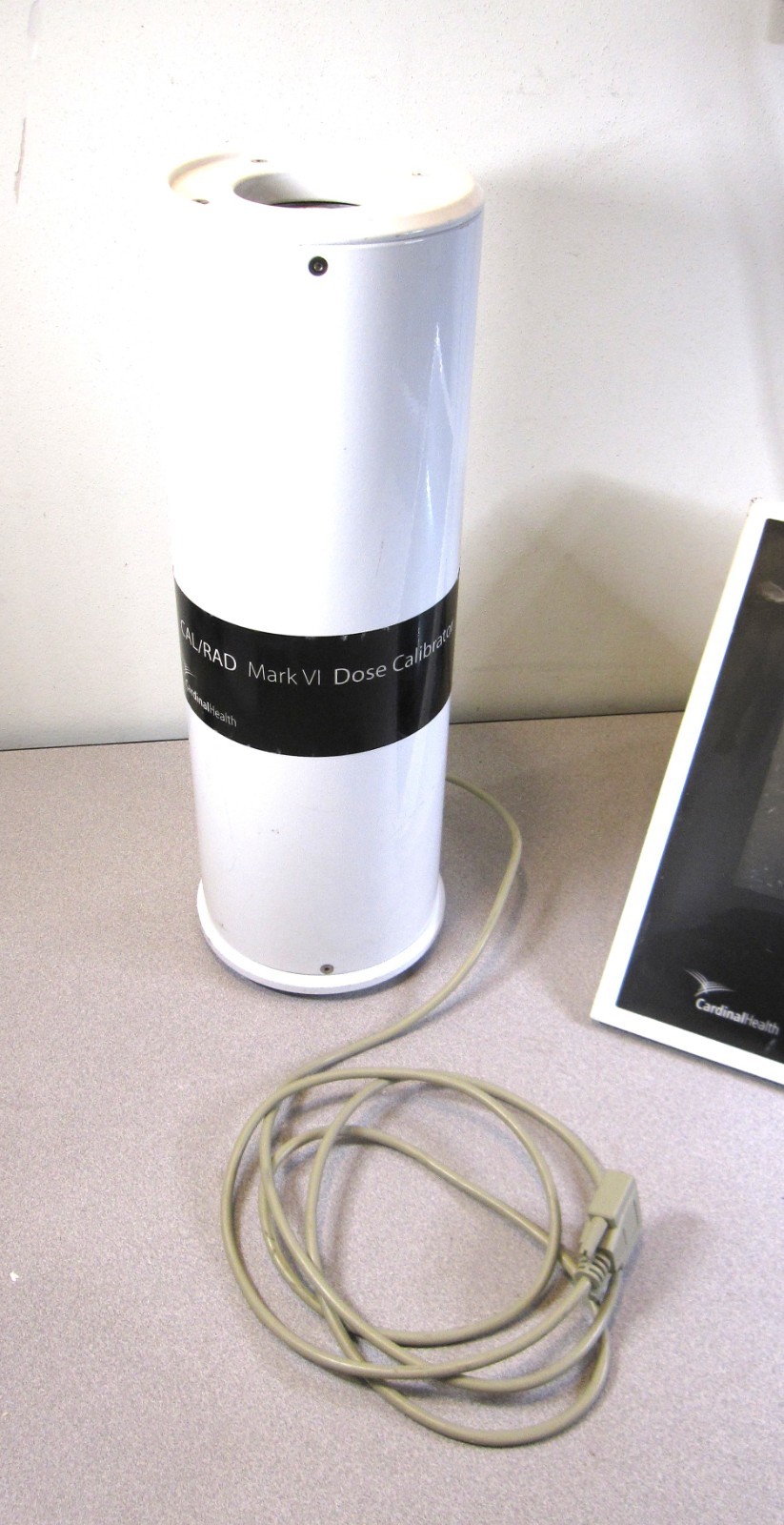

Cardinal Health CAL/RAD Mark VI Dose Calibrator Isolation Chamber VIK-202
