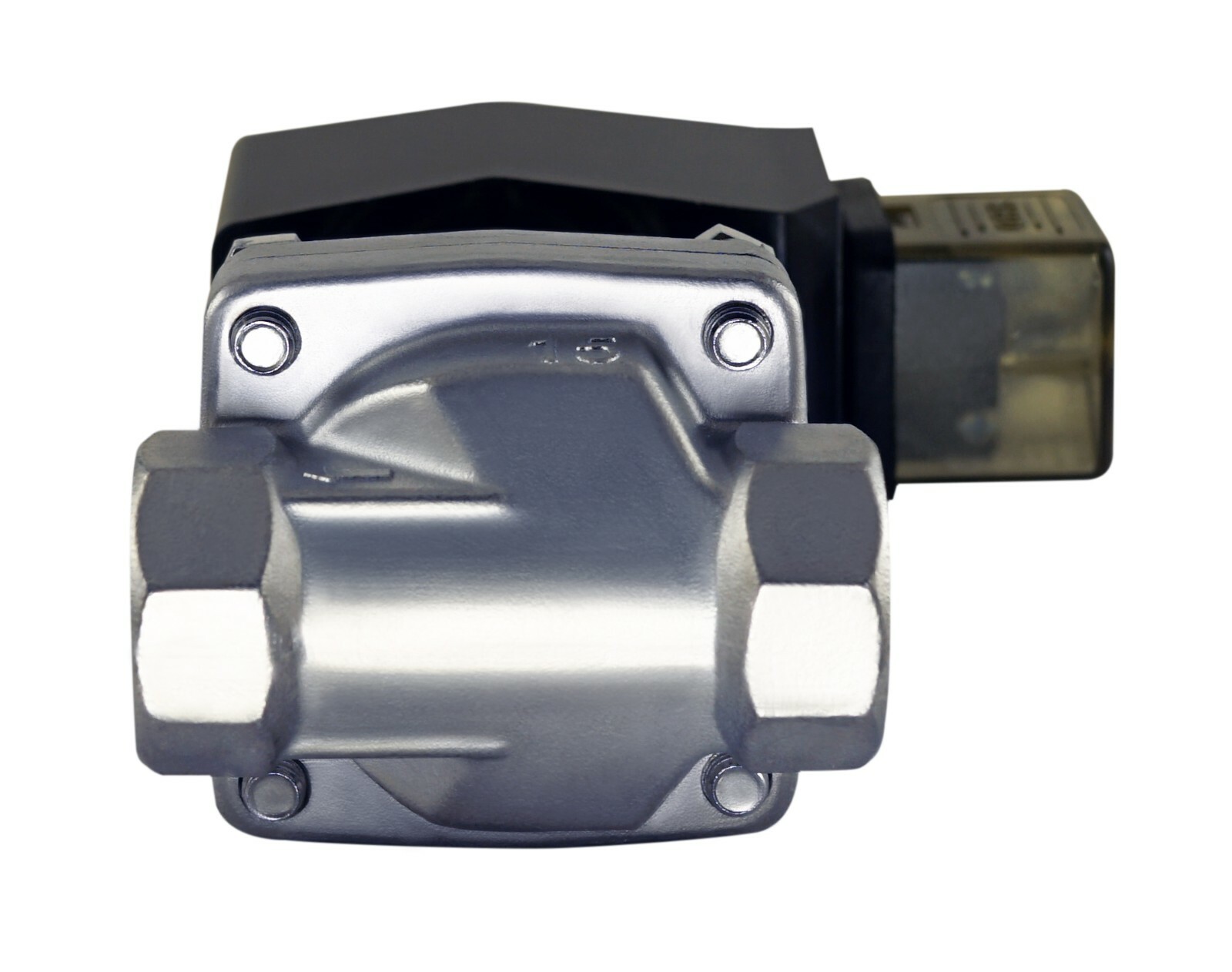

1/2″ Inch Stainless Zero Differential Electric Solenoid Steam Valve 220V AC NC
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 60 Days |
| Refund Will Be Given As | Money Back |
| Suitable Media | Hot Water |
| Model | 2SCL-1/2-220VAC-D |
| Valve Operation | Solenoid |
| Brand | WIC Valve |
| Port Size | 1/2" Inch |
| Coil Voltage | 220V AC |
1/2" Inch Stainless Steel Zero Differential Electric Solenoid Steam Valve 220/240V AC Teflon (PTFE) Seal Normally Closed 2SCL Series 2-way normally closed electric solenoid steam valve is to control On/Off of air, hot water, liquid and steam. This industrial electric steam solenoid valve has one 1/2" inch NPT inlet and one 1/2" inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized. 2SCL Series solenoid valve is a zero differential valve which can be operated at 0 PSI and mounted in any position. 2SCL Series solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized. 2SCL Series Zero Differential Electric Solenoid Steam Valve Specification: Model Number: 2SCL-1/2-220VAC-D Valve Type: 2 Way Normally Closed (Valve opens with energized) Service Media: Air, Liquid, Oil, Hot Water, Steam Operation Model: Direct Lift Piston Flow Model: Uni-Directional Body Material: 304 Stainless Steel Seal Material: Teflon (PTFE) Armature Tube Material: Stainless Steel Spring & Plunger Material: Stainless Steel Coil Certification: CE Certification Coil Power: 50/60Hz 28VA Coil Class: H Class IP 65 Coil Duty: 100% ED (Continuous Duty) Operating Pressure: 0 PSI to 120 PSI Operating Temperature: Media: -5 to 180°C; Ambient: -5 to 45°C Port Size: 1/2" Inch NPT Female Port Coil Voltage: 220/240V AC Voltage Tolerances: DC: +10% –5% ; AC: +10% -15% Electrical Connection: DIN 43650A Coil Connector with LED Indicator 2SCL Series Stainless Steel Zero Differential Electric Steam Valve Dimensions (Unit=mm): Model Port (NPT)Flow Rate (Cv)Orifice Size ABCD2SCL-1/21/2"4.81556107122672SCL-3/43/4"8.52060123140802SCL-11"142572129151922SCL-1 1/41-1/4"203275149175962SCL-1 1/21-1/2"3140931531831182SCL-22"5150116167202150 2SCL Series Stainless Steel Normally Closed Zero Differential Electric Steam Solenoid Valve Component Drawing: Shipping Information: We ship to Alaska, Hawaii, Puerto Rico, Guam, Virgin Islands, APO/FPO. For domestic orders, we ship via US Postal Service Priority Mail (transit time for delivery 2 - 3 business days), unless other shipping method is requested. For international orders, we ship via US Postal Service First Class Mail. (transit time for delivery 5 - 14 business days), unless other shipping method is requested. International customers are responsible for all customs duties, taxes and tariffs. Order Tracking Info: Most orders are shipped within 1-2 business days. Delivery confirmation number will be emailed to you once your package has been shipped. Sales Tax: California residents pay 8.75% sales tax. Customers from other states or countries do not pay sales tax. Return Policy: We want you to be completely satisfied with your purchase. In the event you are unsatisfied, you may return the item providing it is in the same condition as received within 30 days of your invoice date. All damaged and / or defective items must be reported within 5 days of receipt. All returns shipments must be prepaid by sender. Shipping and handling is not refundable. A restocking fee of 20% may be applied to returned merchandise. Returns are not accepted without a prior return authorization number. Contact Us: Should you have any questions, please feel free to contact us by sending an email to our friendly customer service team. We are more than happy to assist you.
